Simple Control Example

[1]:

from IPython.display import display, HTML
display(HTML('<a target="_blank" href="https://colab.research.google.com/github/WaterFutures/EPyT-Flow/blob/main/docs/examples/control_example.ipynb"><img src="https://colab.research.google.com/assets/colab-badge.svg" alt="Open In Colab"/></a>'))

EPyT-Flow is available on PyPI and can be installed via pip install epyt-flow:

[2]:

%pip install epyt-flow --quiet

Note: you may need to restart the kernel to use updated packages.

[3]:

from epyt_flow.data.networks import load_net1
from epyt_flow.simulation import ScenarioSimulator, EpanetConstants
from epyt_flow.simulation import SimpleControlModule
from epyt_flow.utils import to_seconds
from epyt_flow.simulation.events import ActuatorConstants

Create two simple control modules (i.e. entries in the “CONTROL” section of an .inp file) for controlling pump “9” based on the water leven in tank “2”:

LINK 9 OPEN IF NODE 2 BELOW 110
LINK 9 CLOSED IF NODE 2 ABOVE 140

Note that all simple control modules must be instances of SimpleControlModule.

[4]:

# LINK 9 OPEN IF NODE 2 BELOW 110
my_control_1 = SimpleControlModule(link_id="9",
                                   link_status=ActuatorConstants.EN_OPEN,
                                   cond_type=EpanetConstants.EN_LOWLEVEL,
                                   cond_var_value="2",
                                   cond_comp_value=110.)

[5]:

# LINK 9 CLOSED IF NODE 2 ABOVE 140
my_control_2 = SimpleControlModule(link_id="9",
                                   link_status=ActuatorConstants.EN_CLOSED,
                                   cond_type=EpanetConstants.EN_HILEVEL,
                                   cond_var_value="2",
                                   cond_comp_value=140.)

Create new simulation based on Net1:

[6]:

sim = ScenarioSimulator(scenario_config=load_net1(verbose=False))

Set simulation duration to two days:

[7]:

sim.set_general_parameters(simulation_duration=to_seconds(days=2))

Monitor states of tank “2” and pump “9”:

[8]:

sim.set_tank_sensors(sensor_locations=["2"])
sim.set_pump_state_sensors(sensor_locations=["9"])

Note that Net1.inp contains some simple controls. Remove all of them by calling remove_all_simple_controls():

[9]:

sim.remove_all_simple_controls()

Add our simple control modules by calling add_simple_control():

[10]:

sim.add_simple_control(my_control_1)
sim.add_simple_control(my_control_2)

Run the simulation and show sensor readings over time:

[11]:

scada_data = sim.run_simulation()

[12]:

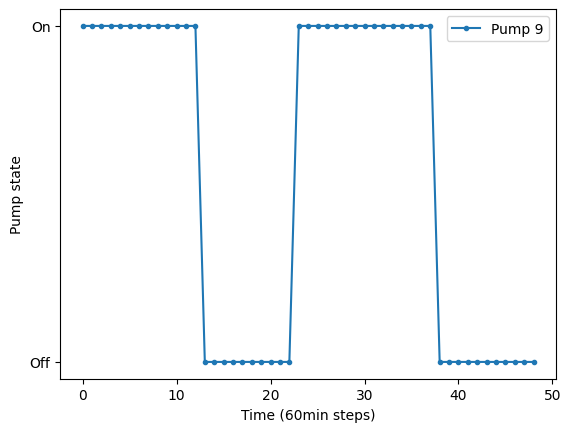

scada_data.plot_pumps_state()

../_images/examples_simple_control_example_20_0.png

[12]:

<Axes: xlabel='Time (60min steps)', ylabel='Pump state'>

[13]:

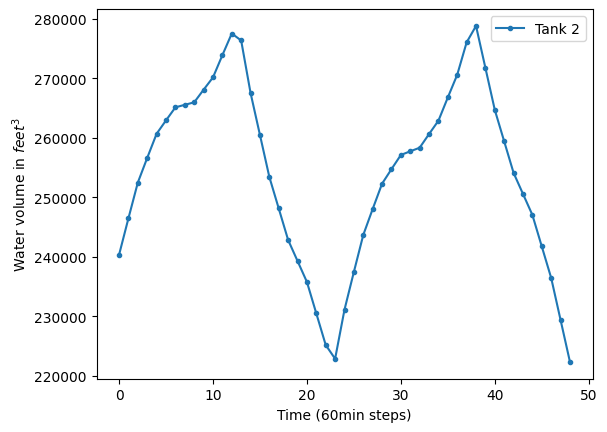

scada_data.plot_tanks_water_volume()

../_images/examples_simple_control_example_21_0.png

[13]:

<Axes: xlabel='Time (60min steps)', ylabel='Water volume in $feet^3$'>

Do not forget to close the simulation!

[14]:

sim.close()
