Custom Control Example

[1]:

from IPython.display import display, HTML
display(HTML('<a target="_blank" href="https://colab.research.google.com/github/WaterFutures/EPyT-Flow/blob/main/docs/examples/control_example.ipynb"><img src="https://colab.research.google.com/assets/colab-badge.svg" alt="Open In Colab"/></a>'))

EPyT-Flow is available on PyPI and can be installed via pip install epyt-flow:

[2]:

%pip install epyt-flow --quiet

Note: you may need to restart the kernel to use updated packages.

[3]:

from epyt_flow.data.networks import load_net1
from epyt_flow.simulation import ScenarioSimulator
from epyt_flow.simulation import CustomControlModule, ScadaData
from epyt_flow.utils import to_seconds, volume_to_level
from epyt_flow.simulation.events import ActuatorConstants

A custom control module mimicing the control rules stated in Net1.inp – note that all control modules must be derived from the CustomControlModule class:

[4]:

class MyControl(CustomControlModule):
    def __init__(self, **kwds):
        # Tank and pump ID
        self.__tank_id = "2"
        self.__pump_id = "9"

        # Tank diameter could be also obtained from EPANET
        self.__tank_diameter = 50.5

        # Lower and upper threshold on tank level
        self.__lower_level_threshold = 110
        self.__upper_level_threshold = 140

        super().__init__(**kwds)

    def step(self, scada_data: ScadaData) -> None:
        # Retrieve current water level in the tank
        tank_volume = scada_data.get_data_tanks_water_volume([self.__tank_id])[0, 0]
        tank_level = volume_to_level(float(tank_volume), self.__tank_diameter)

        # Decide if pump has to be deactivated or re-activated
        if tank_level <= self.__lower_level_threshold:
            self.set_pump_status(self.__pump_id, ActuatorConstants.EN_OPEN)
        elif tank_level >= self.__upper_level_threshold:
            self.set_pump_status(self.__pump_id, ActuatorConstants.EN_CLOSED)

Create new simulation based on Net1:

[5]:

sim = ScenarioSimulator(scenario_config=load_net1(verbose=False))

Set simulation duration to two days:

[6]:

sim.set_general_parameters(simulation_duration=to_seconds(days=2))

Monitor states of tank “2” and pump “9”:

[7]:

sim.set_tank_sensors(sensor_locations=["2"])
sim.set_pump_state_sensors(sensor_locations=["9"])

Note that Net1.inp contains some simple controls. Remove all of them by calling remove_all_simple_controls():

[8]:

sim.remove_all_simple_controls()

Add our custom control module by calling add_custom_control():

[9]:

sim.add_custom_control(MyControl())

Run the simulation and show sensor readings over time:

[10]:

scada_data = sim.run_simulation()

[11]:

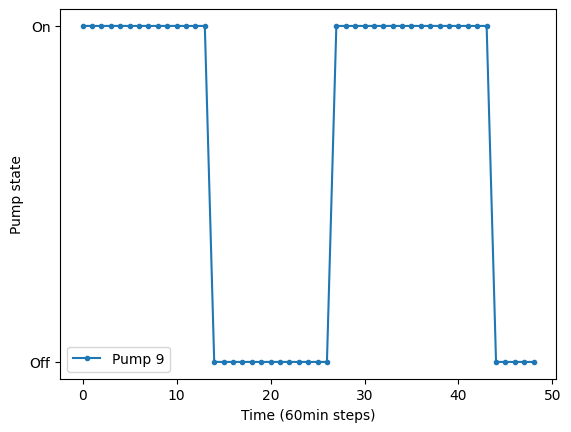

scada_data.plot_pumps_state()

../_images/examples_custom_control_example_19_0.png

[11]:

<Axes: xlabel='Time (60min steps)', ylabel='Pump state'>

[12]:

scada_data.plot_tanks_water_volume()

../_images/examples_custom_control_example_20_0.png

[12]:

<Axes: xlabel='Time (60min steps)', ylabel='Water volume in $feet^3$'>

Do not forget to close the simulation!

[13]:

sim.close()
